Industrial Desander for Cassava Starch Slurry - High-Efficiency Sand Removal with 304 Stainless Steel for Cassava Lines

उत्पाद विवरण:

उत्पत्ति के प्लेस: चीन
ब्रांड नाम: ZY
मॉडल संख्या: डी एस

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा: 1 सेट
मूल्य: 2000-999999USD
प्रसव के समय: साइन बिक्री के 15 दिन बाद संपर्क करें
भुगतान शर्तें: एल/सी,टी/टी
आपूर्ति की क्षमता: प्रति माह 20 सेट
सबसे अच्छी कीमत संपर्क करें

विस्तार जानकारी
रंग: चांदी सफेद गारंटी: 1 वर्ष
आकार: मानक आकार सामग्री: एसएस304
प्रकार: DS2 कच्चा माल: कसावा, आलू, शकरकंद
आवेदन: स्टार्च उत्पादन फ़ायदा: उच्च कुशल
अंतिम उत्पाद: अति उत्तम कसावा स्टार्च गुणवत्ता: उच्चे स्तर का
लागू उद्योग: भोजन और पेय कारखाना

उत्पाद विवरण

Industrial Desander for Cassava Starch Slurry - High-Efficiency Sand Removal with 304 Stainless Steel for Cassava Lines


1.Work principle:

This desanding equipment leverages centrifugal separation to reliably remove sand and impurities from raw materials. Here’s its working mechanism: an eccentrically mounted water inlet pipe connects to the cylinder. When the water-material mixture flows in through the cyclone sand inlet, it spirals downward along the cylinder wall in a tangential motion. Upon reaching a designated part of the conical section, the flow reverses course and spirals upward along the cylinder’s central axis, with purified water finally exiting through the top pipe.
During this cycle, centrifugal force and gravity push sand and heavy impurities to cling to the cone wall, which then slide down into the bottom slag bucket. The bucket features anti-backflow parts that block accumulated impurities from being swept upward by water flow. When impurities build up to the preset level, just open the manual discharge valve, and residual water will flush the debris out smoothly.


2. Description of Desander :


The desanding hydrocyclone is designed to eliminate sand and mud from crushed starch, cassava and potato slurries. It has broad applications in corn starch, cassava starch, cassava flour, wheat starch, sago and potato starch processing.


3 .Features and benefits:


  • Reinforced stainless steel construction ensures exceptional structural strength and prolonged service life.
  • Precision-machined inlet/outlet connections enable secure operation outside the main working zone.
  • Continuous discharge system supports non-stop operation, eliminating short-cycle-related downtime.
  • Six parallel unit groups boost processing capacity, paired with a series-connected unit for two-stage filtration—ensuring efficient sand removal and complete sediment separation.
  • The 304 stainless steel enclosure facilitates easy cleaning and complies with sanitation requirements.


4. Type of machine :



Type Capacity Material
DS2 10t/h fresh cassava SS304 or nylon
DS4 15t/h fresh cassava SS304 or nylon
DS4+1 20t/h fresh cassava SS304 or nylon
Customized per output SS304 or nylon



5. the delivery photo :

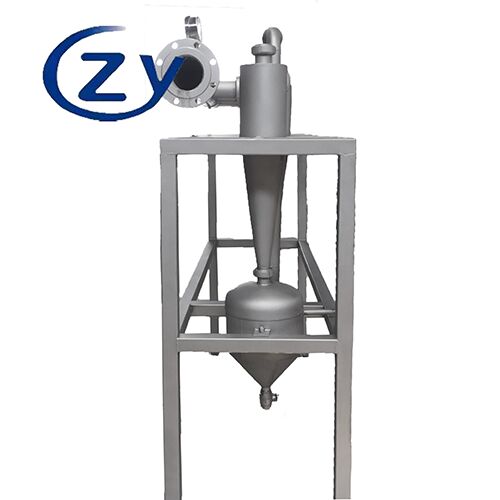

Industrial Desander for Cassava Starch Slurry - High-Efficiency Sand Removal with 304 Stainless Steel for Cassava Lines 0
